Connect BigQuery

Authentication

JSON keyfile

Uploading a service account JSON keyfile

While the fields in a BigQuery connection can be specified manually, we recommend uploading a service account JSONJSON (JavaScript Object Notation) is a minimal format for semi-structured data used to capture relationships between fields and values. keyfile to quickly and accurately configure a connection to BigQuery. You can provide the JSON keyfile in one of two formats:

  • JSON keyfile upload: Upload the keyfile directly in its normal JSON format.
  • Base64-encoded string: Provide the keyfile as a base64-encoded string. When you provide a base64-encoded string, dbt decodes it automatically and populates the necessary fields.

Uploading a JSON keyfile should populate the following fields:

  • Project id
  • Private key id
  • Private key
  • Client email
  • Client id
  • Auth uri
  • Token uri
  • Auth provider x509 cert url
  • Client x509 cert url

In addition to these fields, there are two other optional fields that can be configured in a BigQuery connection:

FieldDescriptionExamples
TimeoutDeprecated; exists for backwards compatibility with older versions of dbt and will be removed in the future.300
LocationThe location where dbt should create datasets.US, EU
A valid BigQuery connectionA valid BigQuery connection

BigQuery OAuth

Available in: Development environments, Enterprise plans only

The OAuth auth method permits dbt Cloud to run development queries on behalf of a BigQuery user without the configuration of BigQuery service account keyfile in dbt Cloud. For more information on the initial configuration of a BigQuery OAuth connection in dbt Cloud, please see the docs on setting up BigQuery OAuth.

As an end user, if your organization has set up BigQuery OAuth, you can link a project with your personal BigQuery account in your personal Profile in dbt Cloud, like so:

Link Button in dbt Cloud Credentials ScreenLink Button in dbt Cloud Credentials Screen

Configuration

To learn how to optimize performance with data platform-specific configurations in dbt Cloud, refer to BigQuery-specific configuration.

Optional configurations

In BigQuery, optional configurations let you tailor settings for tasks such as query priority, dataset location, job timeout, and more. These options give you greater control over how BigQuery functions behind the scenes to meet your requirements.

To customize your optional configurations in dbt Cloud:

  1. Click your name at the bottom left-hand side bar menu in dbt Cloud
  2. Select Your profile from the menu
  3. From there, click Projects and select your BigQuery project
  4. Go to Development Connection and select BigQuery
  5. Click Edit and then scroll down to Optional settings

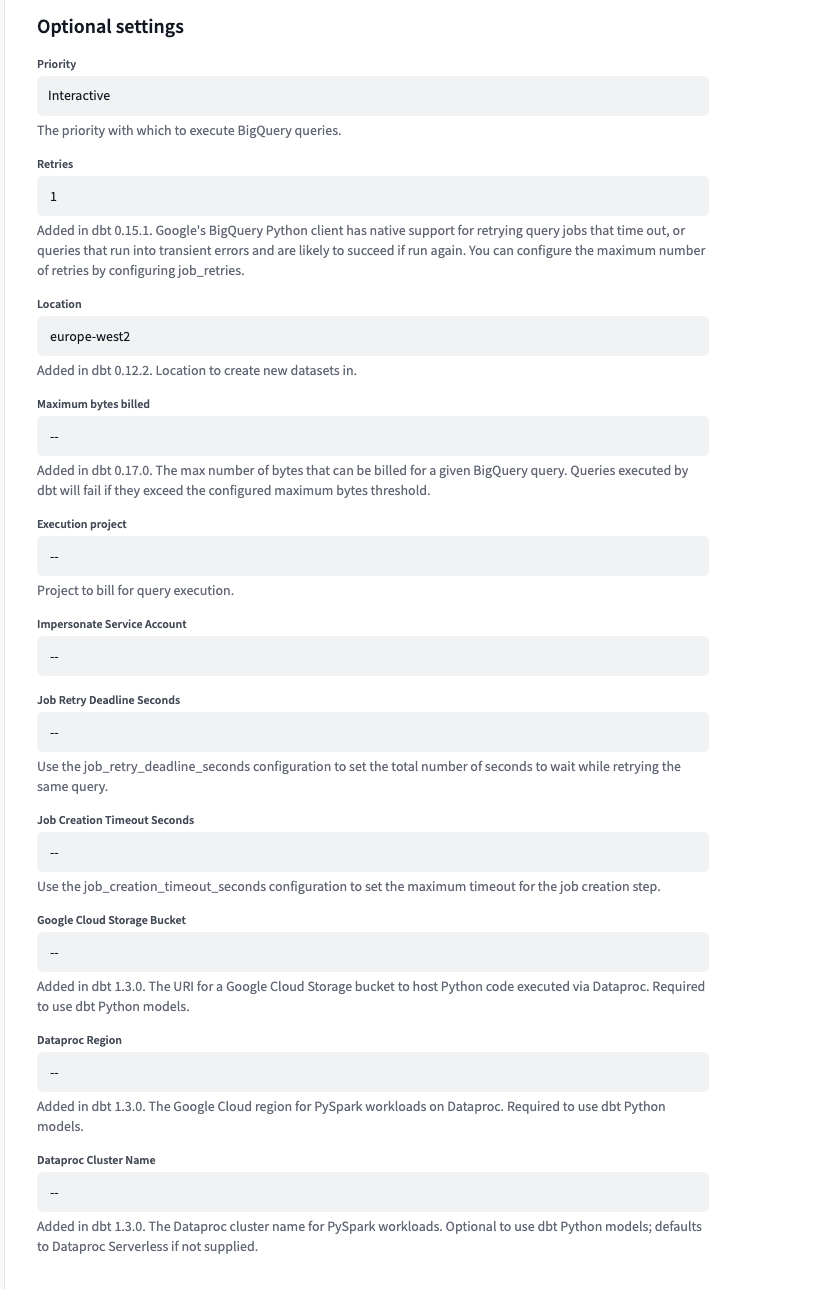

BigQuery optional configurationBigQuery optional configuration

The following are the optional configurations you can set in dbt Cloud:

Configuration
Information
Type
Example
PrioritySets the priority for BigQuery jobs (either interactive or queued for batch processing)Stringbatch or interactive
RetriesSpecifies the number of retries for failed jobs due to temporary issuesInteger3
LocationLocation for creating new datasetsStringUS, EU, us-west2
Maximum bytes billedLimits the maximum number of bytes that can be billed for a queryInteger1000000000
Execution projectSpecifies the project ID to bill for query executionStringmy-project-id
Impersonate service accountAllows users authenticated locally to access BigQuery resources under a specified service accountStringservice-account@project.iam.gserviceaccount.com
Job retry deadline secondsSets the total number of seconds BigQuery will attempt to retry a job if it failsInteger600
Job creation timeout secondsSpecifies the maximum timeout for the job creation stepInteger120
Google cloud storage-bucketLocation for storing objects in Google Cloud StorageStringmy-bucket
Dataproc regionSpecifies the cloud region for running data processing jobsStringUS, EU, asia-northeast1
Dataproc cluster nameAssigns a unique identifier to a group of virtual machines in DataprocStringmy-cluster
 Priority
 Retries
 Location
 Maximum bytes billed
 Execution project
 Impersonate service account
 Job retry deadline seconds
 Job creation timeout seconds

Run dbt python models on Google Cloud Platform

To run dbt Python models on GCP, dbt uses companion services, Dataproc and Cloud Storage, that offer tight integrations with BigQuery. You may use an existing Dataproc cluster and Cloud Storage bucket, or create new ones:

 Google cloud storage bucket
 Dataproc region
 Dataproc cluster name

Account level connections and credential management

You can re-use connections across multiple projects with global connections. Connections are attached at the environment level (formerly project level), so you can utilize multiple connections inside of a single project (to handle dev, staging, production, etc.).

BigQuery connections in dbt Cloud currently expect the credentials to be handled at the connection level (and only BigQuery connections). This was originally designed to facilitate creating a new connection by uploading a service account keyfile. This describes how to override credentials at the environment level, via extended attributes, to allow project administrators to manage credentials independently of the account level connection details used for that environment.

For a project, you will first create an environment variable to store the secret private_key value. Then, you will use extended attributes to override the entire service account JSON (you can't only override the secret key due to a constraint of extended attributes).

  1. New environment variable

    • Create a new secret environment variable to handle the private key: DBT_ENV_SECRET_PROJECTXXX_PRIVATE_KEY
    • Fill in the private key value according the environment

    To automate your deployment, use the following admin API request, with XXXXX your account number, YYYYY your project number, ZZZZZ your API token:

    curl --request POST \
    --url https://cloud.getdbt.com/api/v3/accounts/XXXXX/projects/YYYYY/environment-variables/bulk/ \
    --header 'Accept: application/json' \
    --header 'Authorization: Bearer ZZZZZ' \
    --header 'Content-Type: application/json' \
    --data '{
    "env_var": [
    {
    "new_name": "DBT_ENV_SECRET_PROJECTXXX_PRIVATE_KEY",
    "project": "Value by default for the entire project",
    "ENVIRONMENT_NAME_1": "Optional, if wanted, value for environment name 1",
    "ENVIRONMENT_NAME_2": "Optional, if wanted, value for environment name 2"
    }
    ]
    }'
  2. Extended attributes

    In the environment details, complete the extended attributes block with the following payload (replacing XXX with your corresponding information):

    keyfile_json:
    type: service_account
    project_id: xxx
    private_key_id: xxx
    private_key: '{{ env_var(''DBT_ENV_SECRET_PROJECTXXX_PRIVATE_KEY'') }}'
    client_email: xxx
    client_id: xxx
    auth_uri: xxx
    token_uri: xxx
    auth_provider_x509_cert_url: xxx
    client_x509_cert_url: xxx

    If you require other fields to be overridden at the environment level via extended attributes, please respect the expected indentation (ordering doesn't matter):

    priority: interactive
    keyfile_json:
    type: xxx
    project_id: xxx
    private_key_id: xxx
    private_key: '{{ env_var(''DBT_ENV_SECRET_PROJECTXXX_PRIVATE_KEY'') }}'
    client_email: xxx
    client_id: xxx
    auth_uri: xxx
    token_uri: xxx
    auth_provider_x509_cert_url: xxx
    client_x509_cert_url: xxx
    execution_project: buck-stops-here-456

    To automate your deployment, you first need to create the extended attributes payload for a given project, and then assign it to a specific environment. With XXXXX as your account number, YYYYY as your project number, and ZZZZZ as your API token:

    curl --request POST \
    --url https://cloud.getdbt.com/api/v3/accounts/XXXXX/projects/YYYYY/extended-attributes/ \
    --header 'Accept: application/json' \
    --header 'Authorization: Bearer ZZZZZ' \
    --header 'Content-Type: application/json' \
    --data '{
    "id": null,
    "extended_attributes": {"type":"service_account","project_id":"xxx","private_key_id":"xxx","private_key":"{{ env_var('DBT_ENV_SECRET_PROJECTXXX_PRIVATE_KEY') }}","client_email":"xxx","client_id":xxx,"auth_uri":"https://accounts.google.com/o/oauth2/auth","token_uri":"https://oauth2.googleapis.com/token","auth_provider_x509_cert_url":"https://www.googleapis.com/oauth2/v1/certs","client_x509_cert_url":"xxx"},
    "state": 1
    }'

    Make a note of the id returned in the message. It will be used in the following call. With EEEEE the environment id, FFFFF the extended attributes id:

    curl --request POST \
    --url https://cloud.getdbt.com/api/v3/accounts/XXXXX/projects/YYYYY/environments/EEEEE/ \
    --header 'Accept: application/json' \
    --header 'Authorization: Bearer ZZZZZZ' \
    --header 'Content-Type: application/json' \
    --data '{
    "extended_attributes_id": FFFFF
    }'
